Implementing a communication system with a diversity receiver increases the number of devices, power consumption, board space usage, and signal routing complexity. To reduce RF component count, we can adopt the direct conversion architecture of the quadrature demodulator. However, I/Q mismatch can complicate the design of high-performance receivers. This architecture typically requires multiple components between the RF input and the baseband digital output, which takes up significant board space. In contrast, superheterodyne receivers only need one analog-to-digital converter (ADC), while quadrature demodulators require a two-channel ADC to process real and mirrored signals. While this might be acceptable for single-carrier systems, the question remains: can diversity and direct conversion receivers be effectively used in multi-channel systems? Can they support more than one or two channels efficiently? With the increasing integration of RF and ADC components, it's now possible to create an efficient, high-performance multi-channel direct conversion diversity receiver.
Why choose a diversity receiver? In communication systems, the receiver must be designed to handle low received input power. For example, in cellular base stations (BTS), signals from mobile phones may arrive in environments where the signal is significantly weakened—such as inside garages, multi-story buildings, or crowded urban areas. The transmitted signal from the phone may reach the BTS through multiple paths due to reflections. Using a single antenna and receiver, various versions of the same signal appear on the receiving antenna, each with different phase and amplitude. These variations lead to constructive or destructive interference, known as fast fading, which can cause signal degradation.
Diversity antennas improve the probability of receiving a strong signal by using physically separated antennas. While one antenna might suffer from destructive interference, another may not. This technique helps maintain signal integrity and improves overall reception quality. When designing a diversity receiver, the system must ensure that the signal meets the minimum SNR required for demodulation. By incorporating multiple receive paths, the likelihood of the signal being above the threshold increases. Although adding more paths raises the cost of electronics and antennas, the benefits—such as extended coverage and improved signal quality—can justify the investment. This can also reduce the number of base stations needed, lowering the overall network capital cost.
Why choose ZIF? Zero-IF (ZIF) receivers perform direct conversion from RF to baseband, eliminating the need for an intermediate frequency (IF) stage. This approach reduces the number of RF components, simplifies filtering, and lowers sampling rates. However, when used in a diversity setup, the number of required components doubles, increasing costs, board space, and power consumption. A ZIF receiver, on the other hand, uses fewer components, consumes less power, and saves valuable board space in the RF section.
Why choose an integrated quadrature receiver? Designing a ZIF receiver without discrete components is challenging and often requires significant board space. After signal conversion, there are two baseband analog paths between the mixer output and the dual ADC input, including gain amplifiers and filters. Mismatches in gain and phase along these paths can introduce in-band noise, reducing SNR and EVM, which leads to higher bit error rates. However, highly integrated ZIF receivers, such as TI’s TRF3710, minimize these issues. The I and Q paths are on the same chip, ensuring excellent matching due to minimal process, temperature, or voltage differences. The device includes a complex mixer, a 24dB programmable gain amplifier (PGA), a programmable eighth-order low-pass anti-aliasing filter, and a driver amplifier connected directly to the dual ADC. It also features a DC offset correction module that helps reduce DC components in the analog output. With all these functions integrated, the ZIF architecture becomes user-friendly, maintaining good EVM and matched I/Q paths. By integrating most of the signal chain into a compact package, diversity receive paths can be implemented without sacrificing board space or performance.

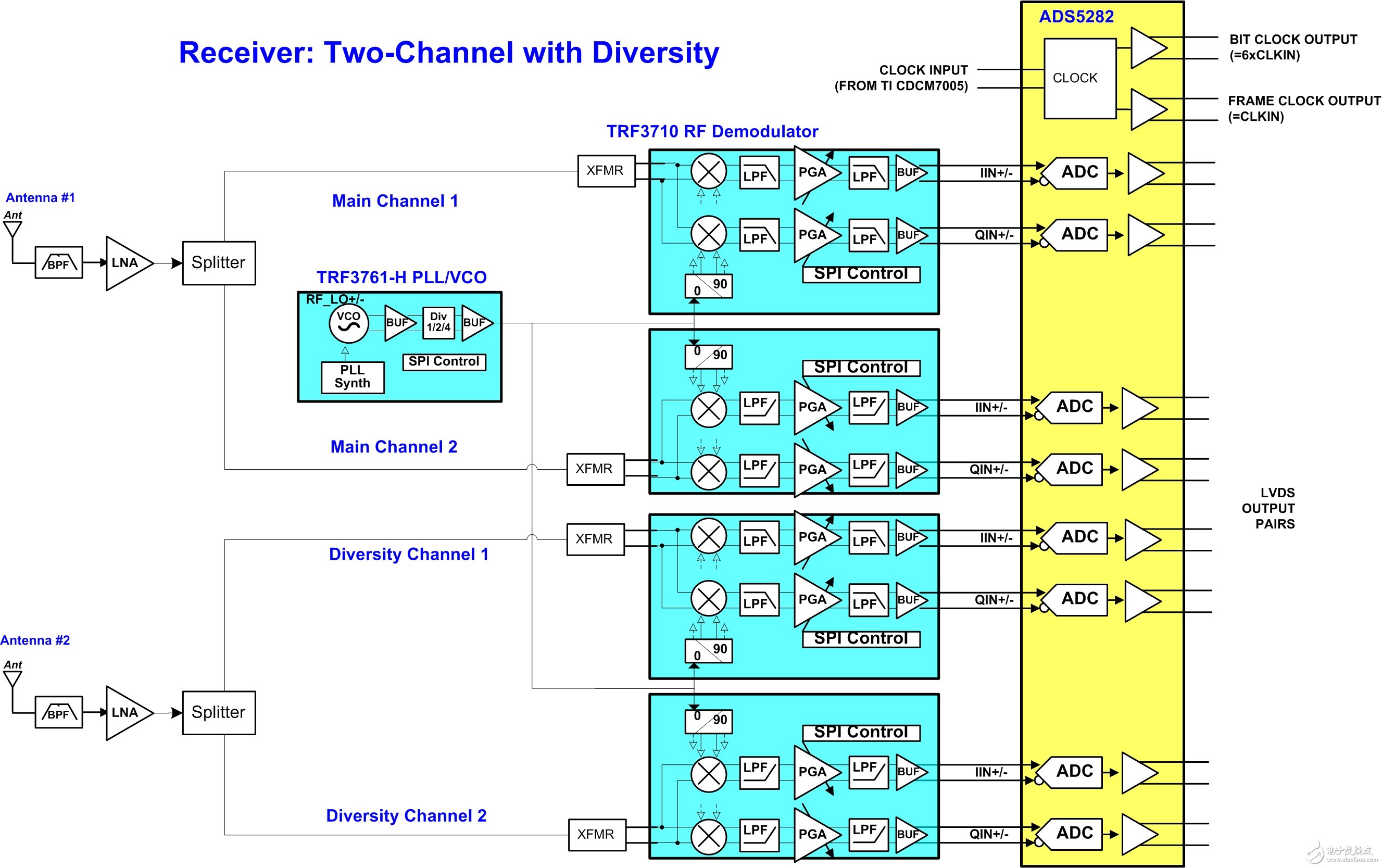

Figure 1: Dual channel diversity ZIF receiver
Why choose an eight-channel ADC? For a dual-channel ZIF receiver using diversity, eight ADCs are required (see Figure 1). If four 12-bit dual-channel ADCs are used, each channel has parallel data outputs, resulting in nearly 100 data lines that must be routed and connected to the FPGA. Additionally, four clocks need to be managed for the ADCs. From a packaging perspective, four 9x9mm, 12-bit dual-channel ADCs occupy over 320mm² of board space. Routing approximately 100 data lines can double the required board space and demand the same amount of data input on the FPGA. Clearly, an eight-channel ADC is a better choice. But what about the power and data lines for eight ADCs in a single package?
Why choose a serial octal ADC? A serial octal ADC offers a more compact and efficient solution compared to multiple parallel ADCs. It reduces the number of data lines, simplifies clock management, and minimizes board space usage. This makes it ideal for high-density, multi-channel systems where space and performance are critical factors. With a single package containing all eight channels, the design becomes more scalable and easier to implement. This is especially beneficial in modern communication systems that require high-speed, low-latency data processing across multiple channels.
